Dissembling of Summarit 50 f1.5

[Infantasy]

Advertisement (gone after registration)

The focusing ring of my Summarit 50 f1.5 is very stiff and I have successfully dissembled for lubrication except the retaining ring as shown. I unscrewed the lock screw and tried to unscrewing the ring anti-clockwise but unsuccessful.  Does anyone know the unscrewing direction is anti-clockwise or clockwise? Thanks a lot.



Welcome, dear visitor! As registered member you'd see an image here…

Simply register for free here – We are always happy to welcome new members!

[jerzy]

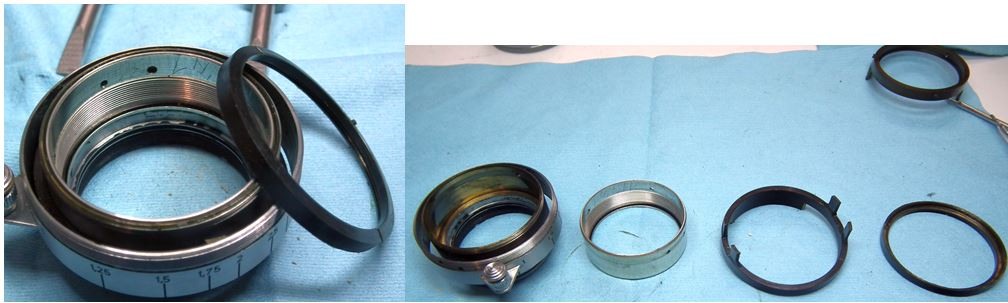

this is standard, clockwise thread (unscrewing counter clockwise). You will need spanner (left photo) On the right photo focusing mount in parts. This is Xenon on the photos, as far as I know mechanical construction is very similar if not the same

Welcome, dear visitor! As registered member you'd see an image here…

Simply register for free here – We are always happy to welcome new members!

[Advertisement]

The Leica Q3 is available for pre-order at B&H Photo Video and Adorama

[Infantasy]

15 hours ago, jerzy said:

this is standard, clockwise thread (unscrewing counter clockwise). You will need spanner (left photo) On the right photo focusing mount in parts. This is Xenon on the photos, as far as I know mechanical construction is very similar if not the same

Welcome, dear visitor! As registered member you'd see an image here…

Simply register for free here – We are always happy to welcome new members!

Thanks Jerzy. I believe they having the same mechanical construction.  Your photo is very helpful. I have similar spanner too but can't unscrew the top retaining ring.  I'll try it again may be let it soaked in alcohol awhile. Thank you very much.

[derleicaman]

You might want to try lighter fluid (benzine)
