Bad LTM adapter?

[Alberti]

Advertisement (gone after registration)

I read somewhere that the “21mm” adapter was meant for the SA in screw mount, therefore also a longer recess.

Edited October 3, 2023 by Alberti

[Alberti]

On 9/26/2023 at 7:54 PM, 01maciel said:

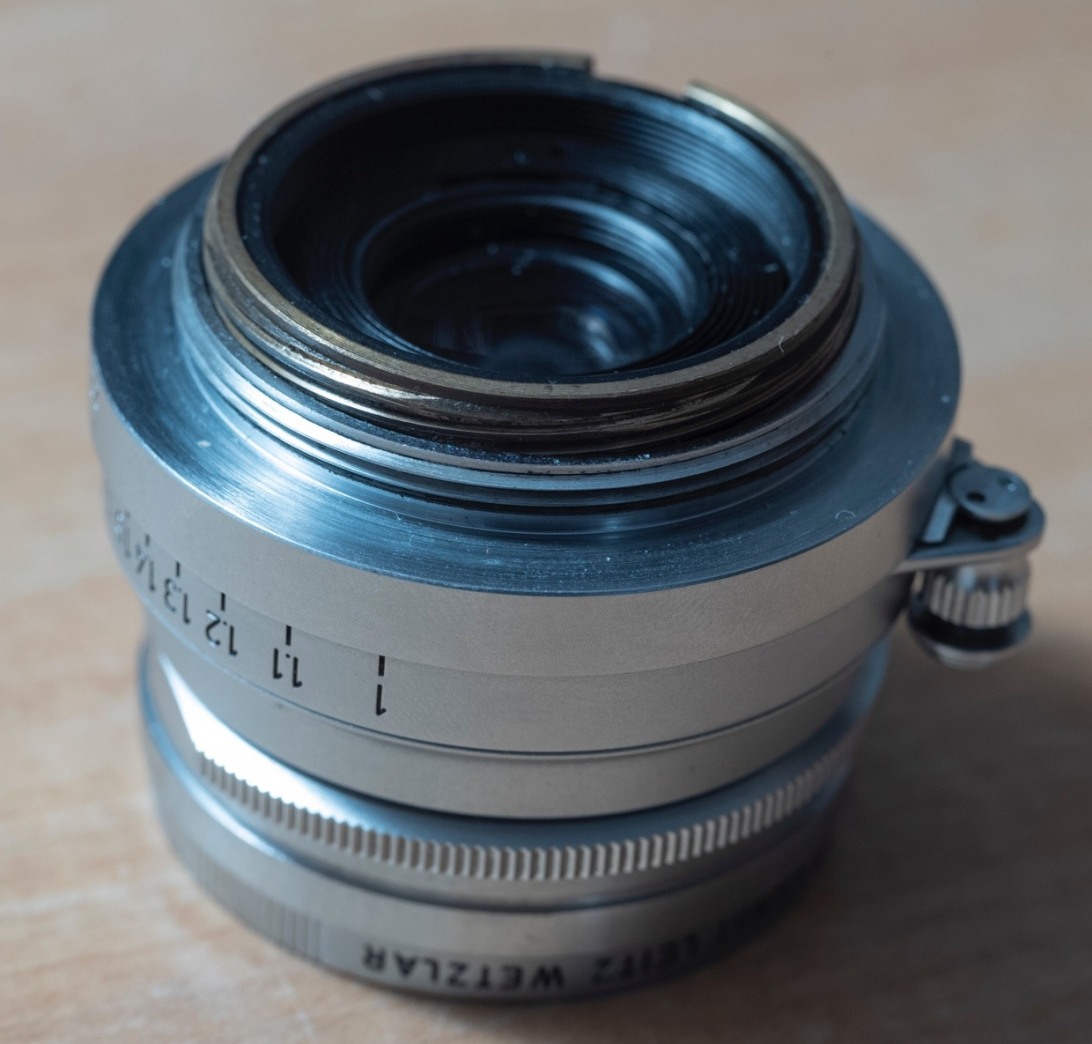

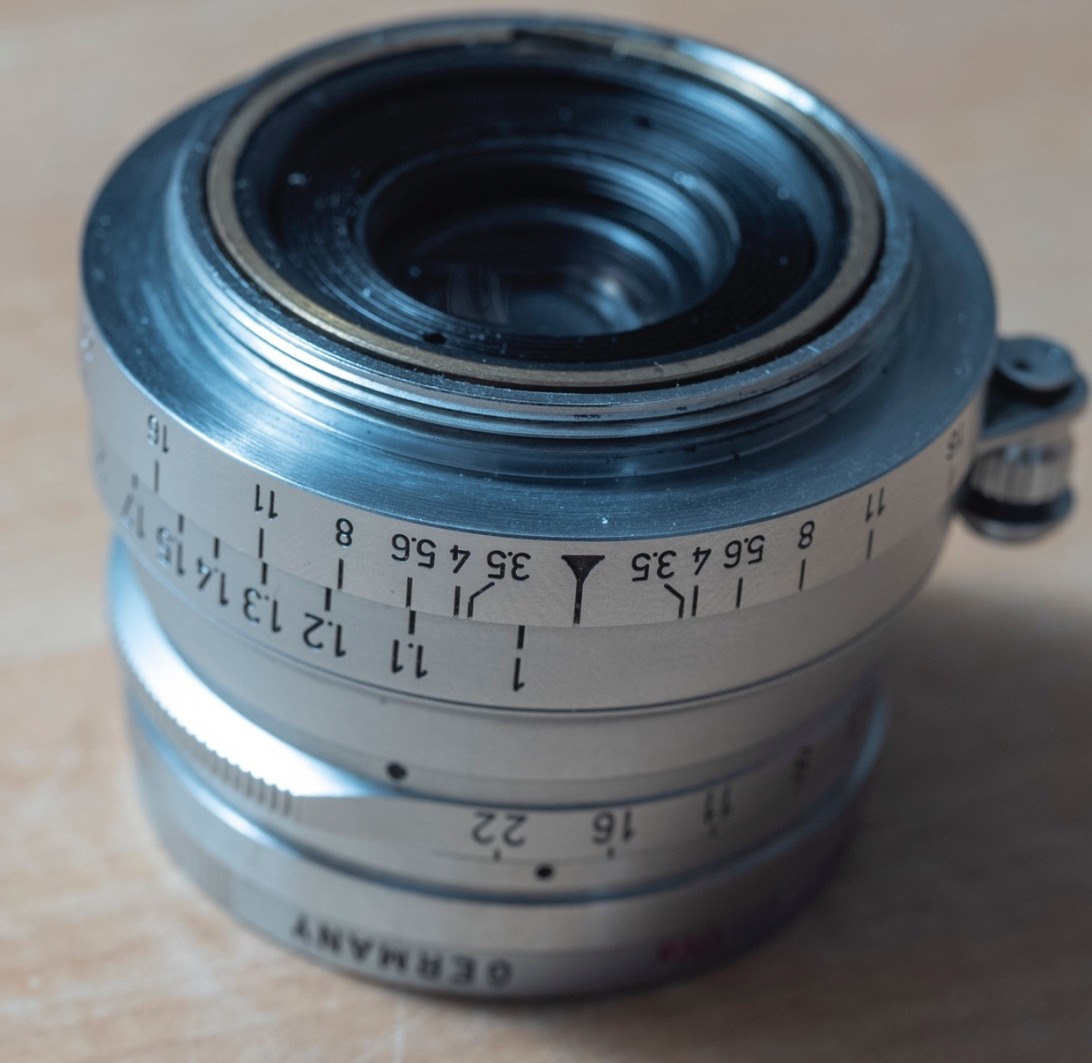

Due to lack of a 35mm LTM adapter, I have been using an adapter for my 'new' Summaron 35mm 3.5 that shows a 50mm frame in the OVF. Now I have ordered the same adapter with 35mm frame and find that the rangefinder coupling does not work properly at close range. For about the entire first third of the close-up range, nothing happens at all in the OVF. Another adapter from a different manufacturer behaves exactly the same. What could be the cause?

A problem I have seen is that the cut-out, the recess in its ‘swoosh’ form, could appear in a slight wrong place. Example. When my Nikkor-HC was adapted to be coupled below 1 meter this recess had to be slightly enlarged. At just below 1m the focus wheel will hitt the edge. Might this be a peoblem?

[Advertisement]

The Leica Q3 is available for pre-order at B&H Photo Video and Adorama

[Alberti]

Today I had a similar problem. The minimum focus was not reached; the RF spot stopped moving (I looked and it was at about 1m50).

What turned out to be the issue? I had not enganged the right frameline  in the correct fashion (turned a slight bit too far or not far enough). That means the roller will be limited by the cutout.

After I noted (I must admit it took some time) I engaged it correctly and the 70cm was available again.

• could that be an issue?

[01maciel]

Am 4.10.2023 um 21:37 schrieb Alberti:

I had not enganged the right frameline

How do you engage framelines on a digital camera exactly?

[UliWer]

Usually your lenses bayonet (or the adapter) triggers the frames. Though you can „cheat“ the mechanism by turning the lens clockwise (seen from the front) when you keep the release knob pressed. Instead of the frames for 50 or 35mm you then always get the 28/90mm frames. If you do so the focus mechanism of the rangefinder will disengage at probably 1.5m.

There is no difference between film and digital M cameras in this respect. The frames are always engaged mechanically, for the newer digital models they are only illuminated by LED and not by ambient light as before.
