gettons Posted September 21, 2020 Share #1 Posted September 21, 2020 (edited) Advertisement (gone after registration) Hello there, I have just received my M3 and whilst investigating it is functioning properly, I tried mounting an Elmar 28mm M-mount like the one attached (the idea is to use both a 50mm ridig and a 28mm elmar with an external optical viewfinder on the M3). Problem is the lens' red dot gets in the way with the lens release button whilst I twist the lens, and I am therefore unable to screw it to the body. I can screw with no problem at all using my M6. Are you aware of any difference between M3 and M6 when it comes to lens mount? I mean they are both M-mount but the lens release button in the M3 is slightly thicker than the one in the M6. Thanks Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! Edited September 21, 2020 by gettons Link to post Share on other sites Simply register for free here – We are always happy to welcome new members! ' data-webShareUrl='https://www.l-camera-forum.com/topic/313522-m3-and-modern-elmar-28mm/?do=findComment&comment=4049787'>More sharing options...
Advertisement Posted September 21, 2020 Posted September 21, 2020 Hi gettons, Take a look here M3 and modern Elmar 28mm. I'm sure you'll find what you were looking for!
Reini Posted September 21, 2020 Share #2 Posted September 21, 2020 You mean the 28mm Elmarit asph? The red button on the Elmarit touches the upper edge of the release button border, but it can be locked on the M3. Link to post Share on other sites More sharing options...

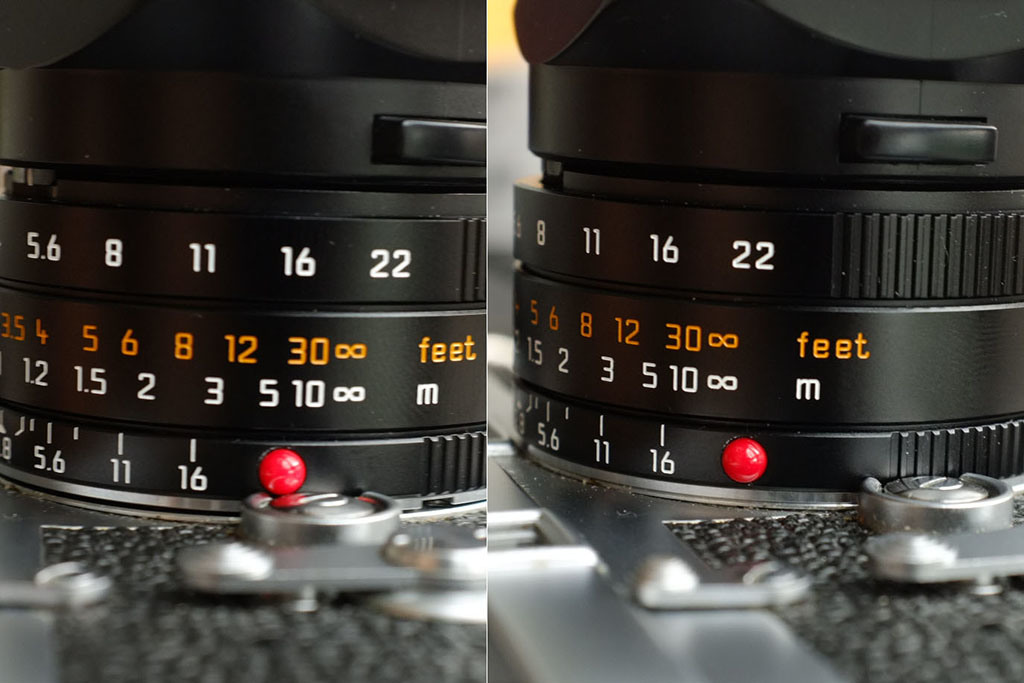

a.noctilux Posted September 21, 2020 Share #3 Posted September 21, 2020 (edited) Same problem, like here https://www.l-camera-forum.com/topic/127042-leica-28mm-f28-elmarit-m-asph-thoughts/?do=findComment&comment=2400581 When I want to mount the Elmarit-M 28 asph. on my M3, the red dot fell, touching the release button, so to use this lens on my M3, red dot must be deleted. Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! photos of Dikaiosune01 Some later M (comprise M3 ! ) have smaller/shorter release button part, so this can be shaved a bit if need be. I have not done the modification, just had the red dot deleted. Edited September 21, 2020 by a.noctilux 1 Link to post Share on other sites Simply register for free here – We are always happy to welcome new members! photos of Dikaiosune01 Some later M (comprise M3 ! ) have smaller/shorter release button part, so this can be shaved a bit if need be. I have not done the modification, just had the red dot deleted. ' data-webShareUrl='https://www.l-camera-forum.com/topic/313522-m3-and-modern-elmar-28mm/?do=findComment&comment=4049809'>More sharing options...
Matlock Posted September 21, 2020 Share #4 Posted September 21, 2020 There are quite a few lenses (the 7Artisans 50mm being one) which cannot be fitted on the M3. Link to post Share on other sites More sharing options...
gettons Posted September 21, 2020 Author Share #5 Posted September 21, 2020 11 minutes ago, a.noctilux said: Same problem, like here https://www.l-camera-forum.com/topic/127042-leica-28mm-f28-elmarit-m-asph-thoughts/?do=findComment&comment=2400581 When I want to mount the Elmarit-M 28 asph. on my M3, the red dot fell, touching the release button, so to use this lens on my M3, red dot must be deleted. Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! photos of Dikaiosune01 Some later M (comprise M3 ! ) have smaller/shorter release button part, so this can be shaved a bit if need be. I have not done the modification, just had the red dot deleted. Thanks for sharing. what do you mean with “deleted”? One is required to somehow remove the red dot from the lens? Link to post Share on other sites More sharing options...
gettons Posted September 21, 2020 Author Share #6 Posted September 21, 2020 34 minutes ago, Reini said: You mean the 28mm Elmarit asph? The red button on the Elmarit touches the upper edge of the release button border, but it can be locked on the M3. Yeah, the asph! I have been trying to mount it but I am a little concerned as the red dot prevents me to push the lens fully in the mount. have you successfully mounted a 28mm elmarit on an m3? Link to post Share on other sites More sharing options...
a.noctilux Posted September 21, 2020 Share #7 Posted September 21, 2020 Advertisement (gone after registration) 3 minutes ago, gettons said: Thanks for sharing. what do you mean with “deleted”? One is required to somehow remove the red dot from the lens? As said, when I mounted the lens on my M3, the lens's red dot fell, so it mounted on my M3 without the red plastic dot. Link to post Share on other sites More sharing options...
Reini Posted September 21, 2020 Share #8 Posted September 21, 2020 (edited) Yes, it works and then clicks into place nicely. When attaching the lens, try to lift it up slightly and then rotate it. I don't want to work on mine now. Maybe you can remove the release button guard and file something above? Edited September 21, 2020 by Reini Link to post Share on other sites More sharing options...
gettons Posted September 21, 2020 Author Share #9 Posted September 21, 2020 29 minutes ago, a.noctilux said: As said, when I mounted the lens on my M3, the lens's red dot fell, so it mounted on my M3 without the red plastic dot. I see. when you say it fell, do you mean it actually came off? If so, after it came off, can you put it back on the lens somehow or it’s gone? Link to post Share on other sites More sharing options...
a.noctilux Posted September 21, 2020 Share #10 Posted September 21, 2020 I glued the red dot back with not too strong glue later on, as I've done so many times on my lenses. Why didn't I use strong glue ? In the past, the red dot broke in pieces when hit somewhere, in use or transportation, when glued strong. 1 Link to post Share on other sites More sharing options...
gettons Posted September 21, 2020 Author Share #11 Posted September 21, 2020 Same thing here apparently Upon checking with a couple stores the red dot really does not make any difference when it comes to the value of the lens (unless for mint status and collection purposes). So I decided to take it off, but I am struggling as it's very well in place. Probably best to use a glue solvent? I Link to post Share on other sites More sharing options...
BradS Posted September 21, 2020 Share #12 Posted September 21, 2020 (edited) 56 minutes ago, gettons said: Probably best to use a glue solvent? I think not. Probably best to use a x-acto knife or small screw driver. Or, maybe just try to mount it and let the camera push it off... Edited September 21, 2020 by BradS Link to post Share on other sites More sharing options...
105012 Posted September 23, 2020 Share #13 Posted September 23, 2020 Later M3's have a reduced size lens release button guard (slightly smaller). On 1966 M3's there is no lens release button guard. I prefer the feel of the earlier M3 release button guard, but obviously a problem for cylindrically shaped lenses with button... As it happens none of my lenses have this issue (including APO-Telyt 135mm)... Link to post Share on other sites More sharing options...
Rennrocky Posted September 23, 2020 Share #14 Posted September 23, 2020 Am 21.9.2020 um 15:47 schrieb Matlock: There are quite a few lenses (the 7Artisans 50mm being one) which cannot be fitted on the M3. No. Only the first model. Link to post Share on other sites More sharing options...
Matlock Posted September 23, 2020 Share #15 Posted September 23, 2020 1 hour ago, Rennrocky said: No. Only the first model. Do you mean first model M3 or 7Artisan lens? We know that later M3s had the button guard reduced and then discontinued. The 7Artisan lens (at least the models I have) depress the actual release button and the lens cannot lock, later lenses may have been modified? Link to post Share on other sites More sharing options...
Rennrocky Posted September 23, 2020 Share #16 Posted September 23, 2020 I think that the lens is modified. But I don´t have experience with a early M3. With my two M2 and my M3 (No +1.000.000) I have no problems 1 Link to post Share on other sites More sharing options...
raizans Posted September 24, 2020 Share #17 Posted September 24, 2020 Some M3 have a lens release button and shroud with less clearance than others. https://rangefinderforum.com/forums/showpost.php?p=2965002&postcount=2102 from MaZo: Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! 1 Link to post Share on other sites Simply register for free here – We are always happy to welcome new members! ' data-webShareUrl='https://www.l-camera-forum.com/topic/313522-m3-and-modern-elmar-28mm/?do=findComment&comment=4051241'>More sharing options...
luigi bertolotti Posted September 24, 2020 Share #18 Posted September 24, 2020 7 minutes ago, raizans said: Some M3 have a lens release button and shroud with less clearance than others. https://rangefinderforum.com/forums/showpost.php?p=2965002&postcount=2102 from MaZo: Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! Yes, I remember well that this question was discussed also in the Forum some years ago : both collar and button had variations during the life of M3... the problem of interferencing did arise with some lens introduced in those years (don't remember which one... maybe a 90 mm) Link to post Share on other sites More sharing options...
Reini Posted October 3, 2020 Share #19 Posted October 3, 2020 I have the same problem with my new M3. The Elmarit 28mm asph cannot be connected because of the red dot. Apart from that I won't mount it there. Link to post Share on other sites More sharing options...
