One of my two IIIg bodies just came back from service with its slow speeds now all firing at the same speed (i guess around 1/30). T still works normally though.

I feel like this is probably due to an oversight in reassembly (since the slow speeds worked correctly before) - any speculation on what happened?

I've had a IIIf apart and done basic cleaning and rangefinder repair, but nothing on a IIIg. This last repair visit took 9 months so I'm not eager to send it back for another round.

[Advertisement]

The Leica Q3 is available for pre-order at B&H Photo Video and Adorama

[earleygallery]

You really do need to send it back.

[jerzy]

if the IIIf you repaired has self timer than taking off body shell on IIIg is not very different, you need to span ST before taking off the lever  and underlaying componenets.
Then you may dismount the front plate and check if the rod connecting slow speed escapement with the shutter is positioned correctly (however I believe it is). Taking off top cover is more difficult, unscrewing the small collars around the windows requires special tools. But before you do anything - check following: - set speed dial to B, slow speeds to 1 and run the shutter. After you press release the shutter will stay opened as long the button is depressed. When you release the button - do you hear the noise of slow speeds escapement? Is the second curtain delayed after releasing the button? Setting slow speeds on 1/5 - could you see the delay between releasint the release button and second curtain closing? Does it sound as 1/5th or rather as 1/30 (50)? Btw. 1/25th is engaging sthe low speeds escapement for a short delay. Setting on black lightning (flash position, approx 1/50) is the slowliest speed when the slow speeds escapement is not yet engaged. So pls check firstly as described above and let me (us) know. I suspect what could be wrong but you would need to open the camera. So if you have repair warranty do send it back as suggested above

[qqphot]

4 hours ago, jerzy said:

if the IIIf you repaired has self timer than taking off body shell on IIIg is not very different, you need to span ST before taking off the lever  and underlaying componenets.
Then you may dismount the front plate and check if the rod connecting slow speed escapement with the shutter is positioned correctly (however I believe it is). Taking off top cover is more difficult, unscrewing the small collars around the windows requires special tools. But before you do anything - check following: - set speed dial to B, slow speeds to 1 and run the shutter. After you press release the shutter will stay opened as long the button is depressed. When you release the button - do you hear the noise of slow speeds escapement? Is the second curtain delayed after releasing the button? Setting slow speeds on 1/5 - could you see the delay between releasint the release button and second curtain closing? Does it sound as 1/5th or rather as 1/30 (50)? Btw. 1/25th is engaging sthe low speeds escapement for a short delay. Setting on black lightning (flash position, approx 1/50) is the slowliest speed when the slow speeds escapement is not yet engaged. So pls check firstly as described above and let me (us) know. I suspect what could be wrong but you would need to open the camera. So if you have repair warranty do send it back as suggested above

Thank you so much as usual, Jerzy -

Yes, i've disassembled the IIIf with ST and also removed the top cover without screwing up much.    With speed dial at B and slow speeds at 1, there is no delay of the second curtain or any sound of the escapement after releasing the button. With slow speed at 1/5 (well, 1/4, IIIg has 1/4 mark) there's still no apparent delay after releasing the button either, more like 1/30 than like 1/5, and no sound of escapement. This is different from what happens with my working IIIg in both cases.

Regardless of whether I send the camera back or not, I'd still rather understand what's happening and how it works than remain ignorant! Thank you for your many very helpful explanations.

[jerzy]

well, missing sound of escapement confuses me a bit, but still - I believe that one gear is not positioned properly. Photo below shows IIIg with spanned shutter, notice position of the pin marked orange, there must be a small gap between pin and black, L-formed bar on escape. Btw - it looks very similar in IIIf (and postwar IIIc). Gear with the pin rotates with the 2nd curtain and after 2nd curtain closes the pin shall be in position marked green, thus pushing the bar left (blue arrow). Bar disangages part of slow speeds escape (black arrow) allowing for faster return of escapement to the home position, thus being faster ready for next shot.
During repair, after reassembling the shutter it is neccessary to position the gear with pin correctly, like on the photo: shutter spanned - there is a small gap, shutter released and closed - pin is pushing bar to the left. If this is done opposite (shutter spanned and pin is pushing bar) than part of escapement is disengaged and it runs much faster but it runs. It does not produce this typical noise (part marked black is detached), there is only noise of gears. You may notice a small hook on the left side of the black bar - this is where the bar on the inner side of front plate is hooked, itis connected to the slow speed dial and disengages part of escapement for faster slow speeds (IIIf is constructed in the same way).
I believe that your problem is in wrong position of gear with the pin, this may happen when the repairman was distored by something when reassembling and did not chek it. Pin shall be unscrewed, repositioned and screwed again - after assembling the shutter.

Welcome, dear visitor! As registered member you'd see an image here…

Simply register for free here – We are always happy to welcome new members!

(do not be irritated with the small film debris - photo is part of repair documentation, this is what I found after removing the front plate)
The second mistake that usually happens to not very much experienced repair person is the ST not working properly - after reassembling the shutter the sprocket drum needs to be positioned correctly. Otherwise ST is producing the noise (it runs) but does not release the shutter. Same is valid for IIIf with ST.

[qqphot]

This is interesting - thank you very much for the explanation and the pictures. I am not sure I'm up for the degree of disassembly needed - taking off the shell is no problem but I don't want to have to disassemble and then later readjust the shutter.

[stvn66]

Advertisement (gone after registration)

Send it back, it should be a priority repair under guarantee.

[qqphot]

On 7/24/2024 at 12:25 AM, stvn66 said:

Send it back, it should be a priority repair under guarantee.

not to go into details but this was already a re-repair and took nine months.

[qqphot]

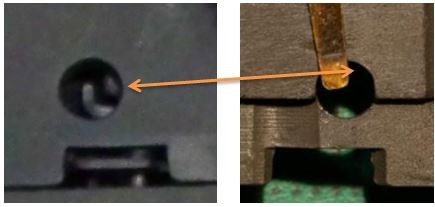

Jerzy - thank you very much for your suggestions. I didn't have much trouble with disassembly though it took a bit of care to remove the front plate without taking the top cover off and I imagine it will be a bit challenging to put it back.   I wonder if these pictures confirm your thoughts or suggest something else. I've left it apart so I'm happy to supply more photos.  It does not appear that the slow speed gear train runs when the shutter is fired on the "1-30" setting regardless of the position of the slow speed dial.

(BTW is this a reasonable amount of lubricant? It seems like someone slathered an awful lot all around inside it.)

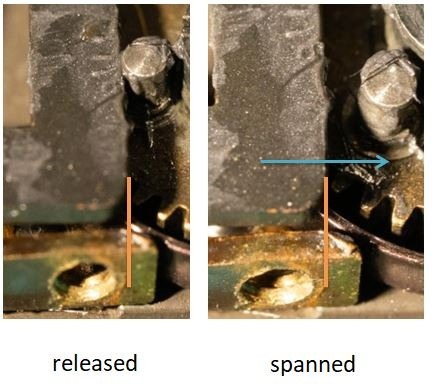

Here is the mechanism with the shutter released:

Welcome, dear visitor! As registered member you'd see an image here…

Simply register for free here – We are always happy to welcome new members!

Shutter released (above)





Shutter spanned (above)



Rear of front cover.

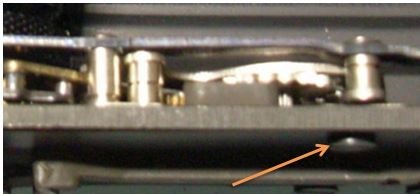

Whole slow speed mechanism (released).
