nxko Posted June 6, 2024 Share #1 Posted June 6, 2024 (edited) Advertisement (gone after registration) Hello. A while back I had issues with a an external optical viewfinder falling out. Guy at camera store recommended I use tape to make it take up room in the hotshoe mount, and not fall out. I did, but when I stopped using the finder, and put in the hotshoe cover, it fell out because the springs were pushed down. Could anyone here please take a picture of their M11 hotshoe springs so I can see how the should be positioned? Will try to fix myself. New plastic M10 cover (M11 was out ot stock, but same mount) cost 300 norwegian kroner. Thats a good margin, I guess. Edited June 6, 2024 by nxko Link to post Share on other sites More sharing options...
Advertisement Posted June 6, 2024 Posted June 6, 2024 Hi nxko, Take a look here Hotshoe springs M11. I'm sure you'll find what you were looking for!

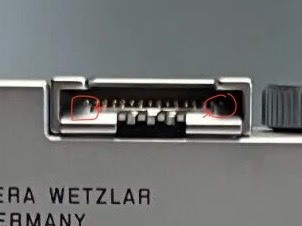

kyono Posted June 6, 2024 Share #2 Posted June 6, 2024 (edited) Oh you had exactly the same experience as me. If you look closely at the inside of your camera's hot shoe, there will be a brass plate like a plate spring at both ends of the shoe. Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! This is a problem caused by the reduction of tension in the area marked in red. The solution is to restore the tension with something like tweezers (Of course, it can also be solved at the service center.) I also experienced it only 2 months ago, so I hope it helps.(Please understand that I used a translator because I'm a non-English speaker.) Edited June 6, 2024 by kyono 1 Link to post Share on other sites Simply register for free here – We are always happy to welcome new members! This is a problem caused by the reduction of tension in the area marked in red. The solution is to restore the tension with something like tweezers (Of course, it can also be solved at the service center.) I also experienced it only 2 months ago, so I hope it helps.(Please understand that I used a translator because I'm a non-English speaker.) ' data-webShareUrl='https://www.l-camera-forum.com/topic/395665-hotshoe-springs-m11/?do=findComment&comment=5335493'>More sharing options...
nxko Posted June 6, 2024 Author Share #3 Posted June 6, 2024 1 hour ago, kyono said: Oh you had exactly the same experience as me. If you look closely at the inside of your camera's hot shoe, there will be a brass plate like a plate spring at both ends of the shoe. Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! This is a problem caused by the reduction of tension in the area marked in red. The solution is to restore the tension with something like tweezers (Of course, it can also be solved at the service center.) I also experienced it only 2 months ago, so I hope it helps.(Please understand that I used a translator because I'm a non-English speaker.) Yes, I have adjusted slightly, but not quite there yet. Keeps sliding out. Was just wondering the exact profile of the spring in normal position. Looks like its lower than mine is now. Hm. Thanks anyways! Link to post Share on other sites More sharing options...
High_n_Dry Posted June 6, 2024 Share #4 Posted June 6, 2024 Just pry them up and out. Be aggressive about it. Hold the end down with one tool and then pry up in the middle of the spring. My hotshoe springs got flattened by a thumb grip and wouldn't trigger a flash. I bought some non-marring tools from Amazon that worked great. https://www.amazon.com/gp/product/B08PTRY4FT/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 1 Link to post Share on other sites More sharing options...
nxko Posted June 7, 2024 Author Share #5 Posted June 7, 2024 10 hours ago, High_n_Dry said: Just pry them up and out. Be aggressive about it. Hold the end down with one tool and then pry up in the middle of the spring. My hotshoe springs got flattened by a thumb grip and wouldn't trigger a flash. I bought some non-marring tools from Amazon that worked great. https://www.amazon.com/gp/product/B08PTRY4FT/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 Alright, I had some tools from iFixit that are similar to these. Great, for now Was that the original thumbgrip? Was considering it, but if it falls off after a little while of use, I’m not that interested! Link to post Share on other sites More sharing options...
High_n_Dry Posted June 8, 2024 Share #6 Posted June 8, 2024 It was the Match Tactical. It doesn't fall out, but it loosened the springs to the point where it wouldn't trigger a flash. I went to the stick on Thumbie on eBay and it works great. Link to post Share on other sites More sharing options...
michaelbrenner Posted June 30, 2024 Share #7 Posted June 30, 2024 Advertisement (gone after registration) On 6/6/2024 at 12:02 PM, High_n_Dry said: Just pry them up and out. Be aggressive about it. Hold the end down with one tool and then pry up in the middle of the spring. My hotshoe springs got flattened by a thumb grip and wouldn't trigger a flash. I bought some non-marring tools from Amazon that worked great. https://www.amazon.com/gp/product/B08PTRY4FT/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 Tools are on the way! Link to post Share on other sites More sharing options...
kiwidad Posted July 5, 2024 Share #8 Posted July 5, 2024 On 6/8/2024 at 1:08 AM, High_n_Dry said: It was the Match Tactical. It doesn't fall out, but it loosened the springs to the point where it wouldn't trigger a flash. I went to the stick on Thumbie on eBay and it works great. I had the same experience with a leica thumb grip.Not quite as bad but it seems to be a design flaw or maybe they never really tighten after being bent. My SF60 flops around so much it is extremely alarming. 1 Link to post Share on other sites More sharing options...
nxko Posted July 7, 2024 Author Share #9 Posted July 7, 2024 On 7/5/2024 at 11:36 PM, kiwidad said: I had the same experience with a leica thumb grip.Not quite as bad but it seems to be a design flaw or maybe they never really tighten after being bent. My SF60 flops around so much it is extremely alarming. Yes, that is the issue. Can’t really use the hotshoe. Leica sent parts to my local Leica store, and they replaced the parts in 5 minutes. I don’t feel like using the hotshoe now as I know what will happen. I lost a zeiss external viewfinder that fell off the hotshoe, so a bit disappointed with the hotshoe. Really liked that zeiss viewfinder. Link to post Share on other sites More sharing options...
Ewemon Posted July 8, 2024 Share #10 Posted July 8, 2024 I prised mine up gently with a jewllers screwdriver and then put a couple of pieces of Washi Black paper Tape on the top side of the Leica Thumb Grip edges. Tight as hell now and doesn't wobble. I used Washi Tape on my Leica Q for years from day one and only sold the camera 2 months ago and it peeled right off and never left any residue or noticeable fading of the black on the camera. Link to post Share on other sites More sharing options...
mrmr Posted December 4, 2024 Share #11 Posted December 4, 2024 My M11 came loose which is disappointing. The first hotshoe cover and viewfinders I tried after getting the camera new, slide out. I'm currently using a piece of tape under my voigtlander viewfinder. Thanks for the tips on adjusting this spring. This and the woeful plastic cover feel like shortcuts. Link to post Share on other sites More sharing options...

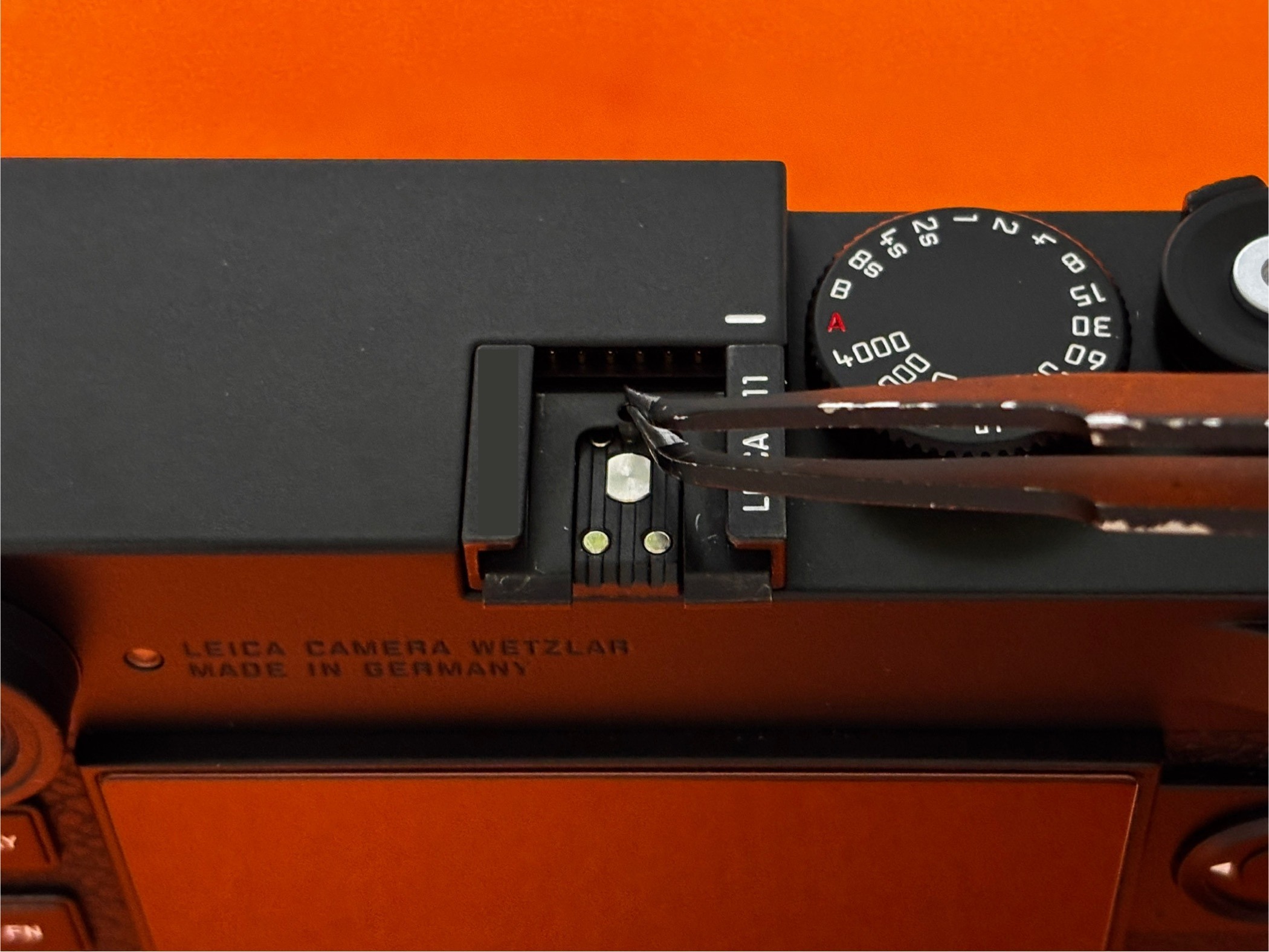

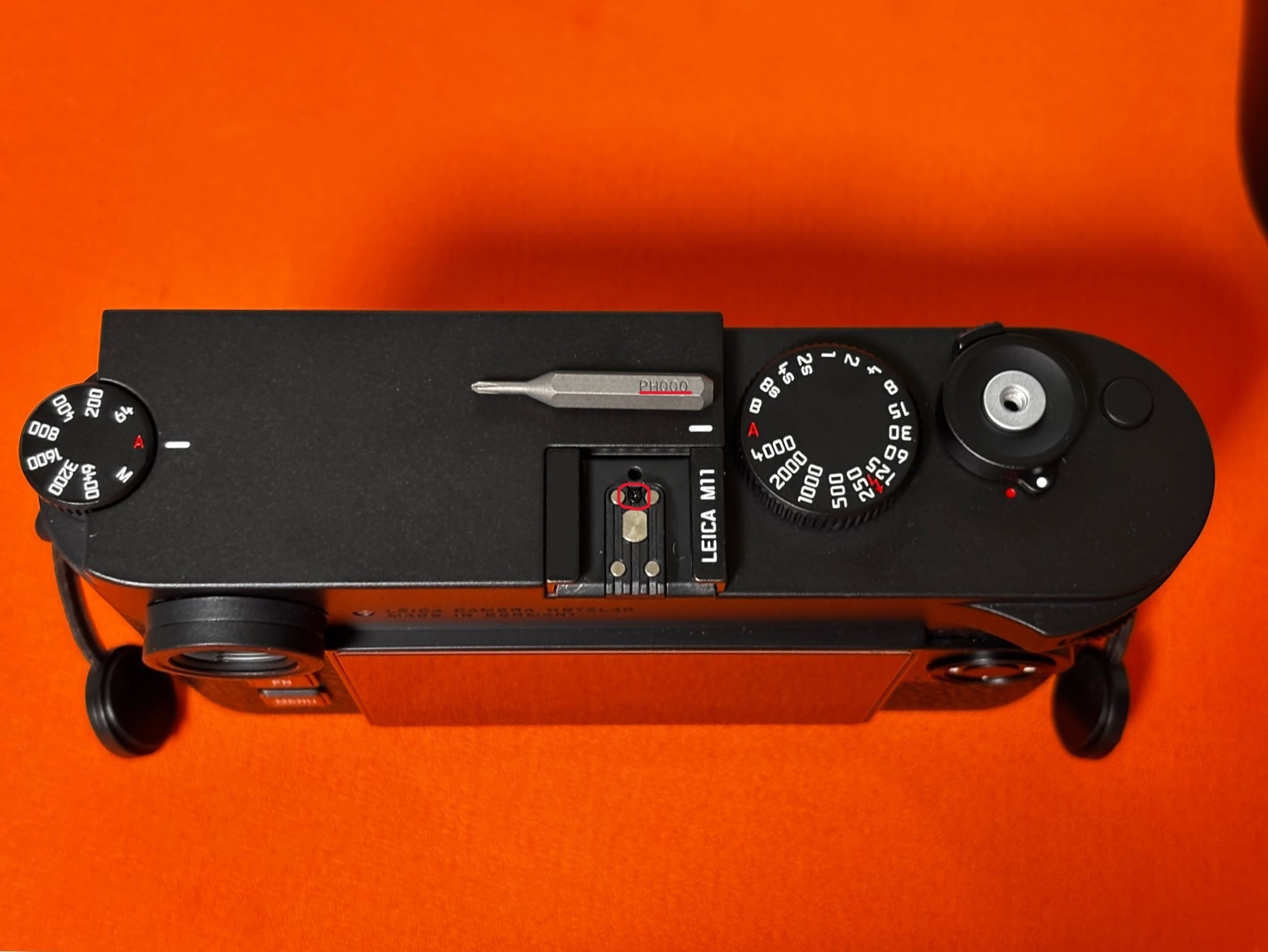

kyono Posted December 6, 2024 Share #12 Posted December 6, 2024 (edited) On 12/5/2024 at 1:02 AM, mrmr said: 제 M11이 느슨해져서 실망스럽습니다. 카메라를 새 것으로 바꾼 후 시도한 첫 번째 핫슈 커버와 뷰파인더가 미끄러져 나갑니다. 지금은 Voigtlander 뷰파인더 아래에 테이프를 사용하고 있습니다. 이 스프링을 조정하는 방법에 대한 팁을 알려주셔서 감사합니다. 이것과 형편없는 플라스틱 커버는 지름길 같습니다. It's been a while since I've posted on this thread, so I'm adding a simple way to adjust it at home. 1. Loosen the screw in the center of the hot shoe with a PH000 driver. Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! 2. Insert the tweezers into the hole above the screw hole and pull the spring out. 3. Adjust the separated spring. 4. Assemble in reverse order. Edited December 6, 2024 by kyono 8 Link to post Share on other sites Simply register for free here – We are always happy to welcome new members! 2. Insert the tweezers into the hole above the screw hole and pull the spring out. 3. Adjust the separated spring. 4. Assemble in reverse order. ' data-webShareUrl='https://www.l-camera-forum.com/topic/395665-hotshoe-springs-m11/?do=findComment&comment=5718653'>More sharing options...
michaelbrenner Posted December 6, 2024 Share #13 Posted December 6, 2024 12 hours ago, kyono said: It's been a while since I've posted on this thread, so I'm adding a simple way to adjust it at home. 1. Loosen the screw in the center of the hot shoe with a PH000 driver. Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! 2. Insert the tweezers into the hole above the screw hole and pull the spring out. 3. Adjust the separated spring. 4. Assemble in reverse order. I've got mine on order. Many thanks for such a simple and obvious solution. I've been using toothpicks to keep my gear attached... Link to post Share on other sites More sharing options...
michaelbrenner Posted December 6, 2024 Share #14 Posted December 6, 2024 12 hours ago, kyono said: It's been a while since I've posted on this thread, so I'm adding a simple way to adjust it at home. 1. Loosen the screw in the center of the hot shoe with a PH000 driver. Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! 2. Insert the tweezers into the hole above the screw hole and pull the spring out. 3. Adjust the separated spring. 4. Assemble in reverse order. I don't suppose you know what the replacement part number is for an M11 flash shoe spring...? Link to post Share on other sites More sharing options...
kyono Posted December 7, 2024 Share #15 Posted December 7, 2024 4시간 전, michaelbrenner는 말했다: I don't suppose you know what the replacement part number is for an M11 flash shoe spring...? Unfortunately, I couldn’t figure out the part number. Link to post Share on other sites More sharing options...
michaelbrenner Posted December 7, 2024 Share #16 Posted December 7, 2024 18 hours ago, kyono said: Unfortunately, I couldn’t figure out the part number. bummer. Well, when the PH000 driver arrives, I'll see how it goes. Link to post Share on other sites More sharing options...
tyler Posted January 7 Share #17 Posted January 7 Actually a SMALL drop of superglue under the springs on both sides--no problem... Link to post Share on other sites More sharing options...
kiwidad Posted January 11 Share #18 Posted January 11 On 12/6/2024 at 2:38 AM, kyono said: It's been a while since I've posted on this thread, so I'm adding a simple way to adjust it at home. 1. Loosen the screw in the center of the hot shoe with a PH000 driver. Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! 2. Insert the tweezers into the hole above the screw hole and pull the spring out. 3. Adjust the separated spring. 4. Assemble in reverse order. So the screw is just loosened? Link to post Share on other sites More sharing options...
kyono Posted January 11 Share #19 Posted January 11 (edited) 36분 전에, kiwidad가 말했다: 그래서 나사가 그냥 풀린 거야? The screw is the element that fixes the spring(brass plate). The spring is made of brass, so if you continue to attach the thumb grip or external viewfinder to the hot shoe, the spring may not be restored to its original state after disconnecting it. Welcome, dear visitor! As registered member you'd see an image here… Simply register for free here – We are always happy to welcome new members! Edited January 11 by kyono Link to post Share on other sites Simply register for free here – We are always happy to welcome new members! ' data-webShareUrl='https://www.l-camera-forum.com/topic/395665-hotshoe-springs-m11/?do=findComment&comment=5737690'>More sharing options...
