WATE, MATE, SATE's s - Small Angle Tri Elmar's ...


Recommended Posts

Advertisement (gone after registration)

WATE - Wide Angle Tri Elmar : TRI-ELMAR-M 16-18-21 mm ASPH

MATE - Medium Angle Tri Elmar :  TRI-ELMAR-M 28-35-50 mm ASPH

SATE's - Small Angle Tri Elmar's  : ...





  The topic is:  quasi -  SATEs - Small Angle Tri Elmars : 65mm 90mm 135mm & Apo-Extender-M



Some of us would like to see Leica revising and extending the Tri-Elmar concept - ...  very useful for hiking and travelling.  { WATE & MATE }

Whether the new Vario-Elmar-M will go into series production is not yet clear ( *... ).

With the introduction of system cameras with 'real-time image display' and electronic viewfinder, the proven Visoflex housing with M bayonet can be omitted if required.





The use of E. Leitz Visoflex components is a weight-, volume- and cost-optimized alternative:

...

Link to post
Share on other sites

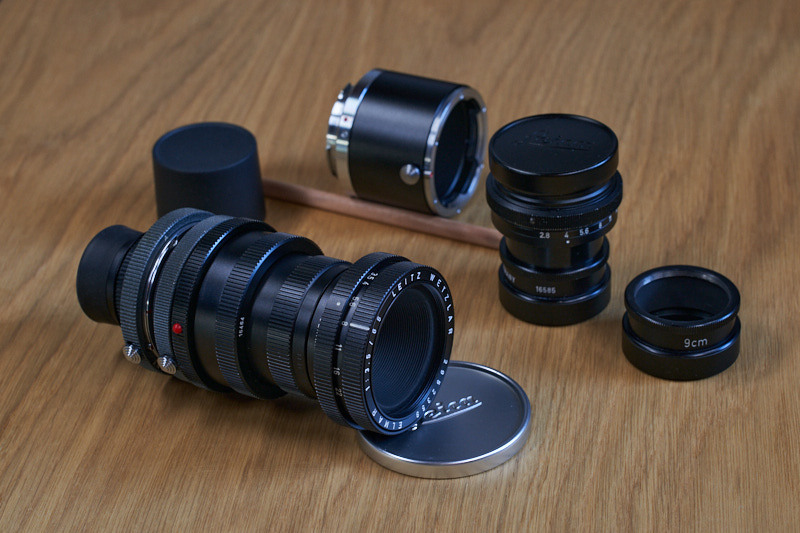

SATE´s - Small Angle Tri Elmar´with focusing unit





Tilt-/Shift- Extension Bellows with M mount, E. Leitz Elmarit M 2.8/90mm (on Flickr)





detail:

Link to post
Share on other sites

.



1. Focus Unit E. Leitz Elmarit 1:2.8 / 90mm (205g)

- or alternatively

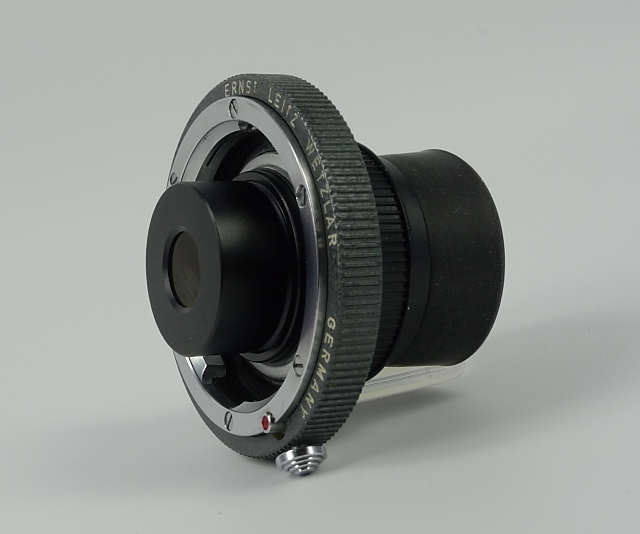

2. intermediate M-ring with integrated tripod mount & universal focus unit(363g)

 Construction:
- Intermediate M-Spacer E. Leitz Wetzlar No.16469 / OUFRO
- Adaptor Leitz Wetzlar No.16466(Y)/ OUBIO

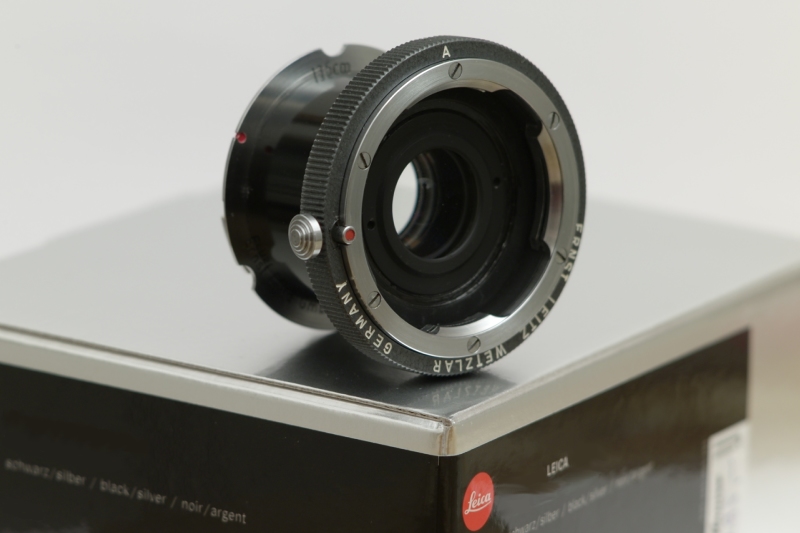

- M-M39 E. Leitz Wetzlar adapter "A"
- universal focus unit No.16464 / OTZFO




3. - lens head E. Leitz Elmar 1:3.5 / 65mm (120g)
4. - lens head E. Leitz Elmarit 1:2.8 / 90mm (131g)
5. - lens head E. Leitz Tele-Elmar 1:4 / 135mm (182g)



(Accessories: sun shade 30g + rear lens cap as transport protection 3*19g = 87g
APO-Extender-M (155g) with extension ring (57g) = 212g )

Depending on the variant of the focus unit used, the total weight is 725g or 883g.
The OROLF is too heavy and bulky for me. (;-)

The intermediate spacer/ring with integrated tripod mount (No.16466(Y)/OUBIO) is useful for using the APO-Extender-M.
Link to post
Share on other sites

...













Fleckenstein, E. Leitz Tele-Elmar 1:4 / 135mm (on Flickr)











Fleckenstein, E. Leitz Tele-Elmar 1:4 / 135mm with APO-Extender-M (v 3x) (on Flickr)









...

Link to post
Share on other sites

In the post 'What comes after...' I mentioned the complementary continuation of the new product range VISOFLEX-EVF and current 'Macro-Adapter-M' (14652).

Example of use: At the left front the 'model of a focus mount with M bayonet' as a replacement for one or two 'high value' Macro-Adapter-M (14652).



 Tilt-/Shift- Extension Bellows with M mount,  E. Leitz Elmarit M 2.8/90mm  (on Flickr)



Thorsten (Dao De Leitz)


 my series of topics  -  Modification for M:

Tilt-/Shift- Extension Bellows with M mount,  Extension rings for Visoflex lenses on system camera M,   APO-Extender-M,   TO-M

Link to post
Share on other sites
  • 3 months later...

Example of use: At the left front the 'model of a focus mount with M bayonet' as a replacement for one or two 'high value' Macro-Adapter-M (14652).





Thorsten,



I'm looking at the 'model of a focus mount with M bayonet' and am wondering how you interfaced the Leitz "Adapter A" 39mm to the Leitz 16464 (33mm x 0.7mm pitch)?  Did you modify a 16471 adapter with a 39mm female?



Best Regards,



Rick

Link to post
Share on other sites

Advertisement (gone after registration)

Hello Rick,

correctly recognized.


Here you will find detailed pictures (&) and notes on the application with the corresponding order designation.    (German language part of the forum.)


I think the focusing device16462 (optimized) #14-2 is more robust and therefore also gets an adapter to M39 / Adapter " A ".


Regards,

Thorsten   (... Flickr)

Link to post
Share on other sites
  • 2 years later...

Just recently this brings me back to an older consideration that also looks very satisfying.

Am 9.10.2012 um 21:13 schrieb Dao De Leitz:
9





Design  (2012) digital CL camera with full format sensor... (;-) - The S. A7C camera shows that it works!



In this case, the Flicker-Free View with TO-M   -  an extension ring ~14,4mm and ring No. 16471... ( (;-) perfect)



Thorsten
