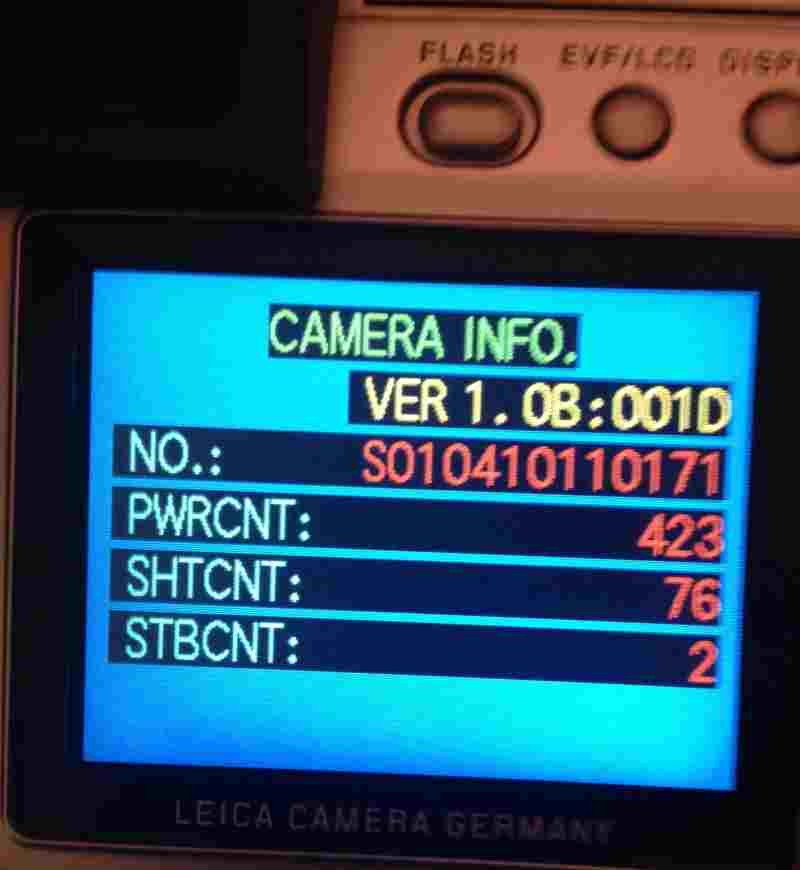

pitti Posted June 6, 2010 Share #1 Posted June 6, 2010 Advertisement (gone after registration) Hello, ok, here there are. At your own risk. For me it works fine. :-) 1) Make sure that you have insert a full battery in your D2! Put a sd-card into the slot and make some pictures. Turn the power "Off". 2) Set the mode dial to "Single picture". 3) Press "Flash" (the small button on the right top of the cam) and "Up" on the cross key simultan, hold them and turn "On" the power. 4) Press simultan "Flash", "Menu" and "Left". Now you are at the error code memory screen. 5) Press simultan "Flash", "Menu" and "Left" again and whoops here are the most interesting infos. The camera information is interpreted below: VER 1.0B : 001D -> Firmware version is 1.0B. NO.: S010XXXXXXXXXX -> A 12-digit number with a "S" prefix. (Motherboard serial number?) PWRCNT: 834 -> Power On Count, the number of times camera turned on. SHTCNT: 5873 -> Shutter Count, the number of times shutter fired. STBCNT: 80 -> Strobe Count, the number of times flash fired. 6) Turn "Off" the power. This procedure works also with the lumic lc1. Have fun :-) Regards Peter 3 Quote Link to post Share on other sites More sharing options...
Advertisement Posted June 6, 2010 Posted June 6, 2010 Hi pitti, Take a look here Shuttercount Digilux 2 SOLVED. I'm sure you'll find what you were looking for!
richiyaado Posted June 7, 2010 Share #2 Posted June 7, 2010 It worked for me, too... Thanks! Quote Link to post Share on other sites More sharing options...
dugby Posted June 8, 2010 Share #3 Posted June 8, 2010 Awesome - Thanks for that. There has been talk on this forum about two firmware levels. Now there is proof. My firmware is 1.0A Quote Link to post Share on other sites More sharing options...
elgenper Posted June 8, 2010 Share #4 Posted June 8, 2010 Awesome - Thanks for that. There has been talk on this forum about two firmware levels. Now there is proof. My firmware is 1.0A Even more confusion.... Mine is Ver 1.09:001C It had its sensor replaced about a year ago. Quote Link to post Share on other sites More sharing options...

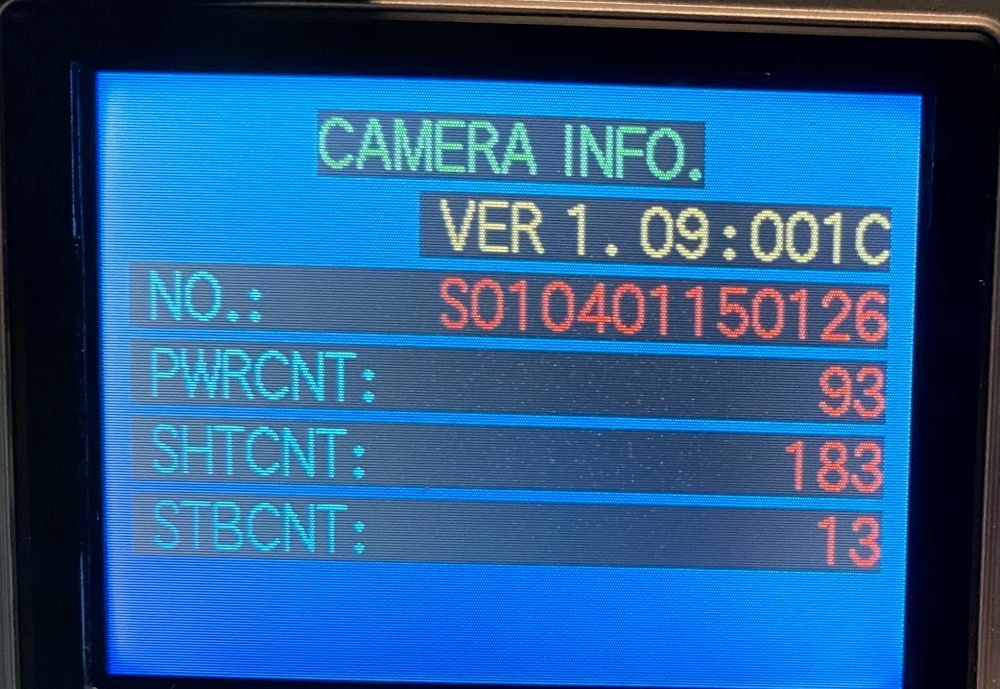

jvan01 Posted June 8, 2010 Share #5 Posted June 8, 2010 Even more confusion.... Mine is Ver 1.09:001C It had its sensor replaced about a year ago. Mine is 1.09:001C as well. The camera was sent in for sensor replacement by the previous owner. Quote Link to post Share on other sites More sharing options...
pitti Posted June 8, 2010 Author Share #6 Posted June 8, 2010 Version: VER 1.0B : 001D Sensor replacement at march 08 in germany. Regards Peter Quote Link to post Share on other sites More sharing options...
ASpes Posted June 8, 2010 Share #7 Posted June 8, 2010 (edited) Advertisement (gone after registration) Thanks Pitti, after years this has surfaced at last. Really thanks. Mine shows ver. 1.0b:001d for the firmware. I bought this camera used in late 2006, if I'm not wrong, and AFAIK sensor has *not* been replaced. Actually I remember all the alarm about this issue came up a while after I got it. Btw, this info shows that I probably mixed up cards with one of the other D/2's I had, as the picture numbering shows a count of 4.885 while it displays just 3.715 with your method. Now, Pitti, any chance you can get this info for the Digilux 3 too? Tried this one, sort of as button layout is different, but could not get it to work. Thanks again. Edited June 8, 2010 by ASpes Quote Link to post Share on other sites More sharing options...
pitti Posted June 9, 2010 Author Share #8 Posted June 9, 2010 For the Panasonic L1 (it should works for a D3 too): SOLVED Finally! Panasonic DMC-L1 Service Menu (including actuation count - Four Thirds User discussion forum Regards Peter Quote Link to post Share on other sites More sharing options...
ASpes Posted June 9, 2010 Share #9 Posted June 9, 2010 Amazing, Pitti, a BIG thank from me. Yes, it works perfectly on the Digilux 3 too. And got surprised by the shutter count of one of my D3's, actually it's a refurbished one and working flawlessly. Funny how these infos got to stay hidden for such a long time. Again thanks for pointing me to that page. Quote Link to post Share on other sites More sharing options...
Guest purpledot Posted June 9, 2010 Share #10 Posted June 9, 2010 Thanks Peter - great fun. Now, spill the beans on how to do it on a V-Lux1 as well Quote Link to post Share on other sites More sharing options...
pitti Posted June 11, 2010 Author Share #11 Posted June 11, 2010 Thanks Peter - great fun. Now, spill the beans on how to do it on a V-Lux1 as well You could look at the service manual of the panasonic fz50. At page 14 are some shortcuts about how to enter the service-menu. At the digilux 2 we had to repeat step 2 (page 16) to get the shuttercount. I don't know fi it works on the V-Lux too... Well, I have no V-Lux. You have to try it yourself. FZ50 Service Manual Regards Peter Quote Link to post Share on other sites More sharing options...
Guest purpledot Posted June 11, 2010 Share #12 Posted June 11, 2010 (edited) Can confirm it works Same procedure as you listed originally - only slightly different keys 3) Press "Image Stabilisation" and "Up" on the cross key simultaneously, hold them and turn "On" the power. 4) Press simultaneously "Image Stabilisation", "Menu" and "Left". Now you are at the error code memory screen. 5) Repeat step 4. And voila! And same caveat - do it at your own risk I was surprised to see how many times my flash had been fired (I bought it used) - almost 20% of all photos. Great fun - thanks for the link to the service manual. Edited June 11, 2010 by purpledot ɹoɹɹǝ ƃuıllǝds Quote Link to post Share on other sites More sharing options...
Pol-Alexandre Posted June 12, 2010 Share #13 Posted June 12, 2010 Many Thanks, Pitti ! Works good ! Very precise ! My Camera says : Ver 1.0B.001D Nr S02 04 09 15 0078 PWRCNT 2129 SHTCNT 4898 STBCNT 1543 These counters are active The number can be read as follows : S02=prefix Date 04 09 15 = 15 sept 2004 0078 is a sequence nr (infos match well with ME program) On my camera the sensor was replaced in Solms in May 2007 but apparentlly they did not reset the counters. I have downloaded the DMC-LC1 Service Manual- Interesting ! Quote Link to post Share on other sites More sharing options...
guzzipap Posted June 14, 2010 Share #14 Posted June 14, 2010 Wow, works great, V1.0B:001D Nr S02 04 07 18 0229 Pwrcnt 3299 Shtrcnt 12787 ! Stbcnt 1808 I don't know if the sensor has been replaced. Charles Quote Link to post Share on other sites More sharing options...
Simonizer Posted June 15, 2010 Share #15 Posted June 15, 2010 ...did it fine on my Digilux 2, tried same method with my L1 but no go... (I got the body today as a backup!). I also tried the link. No go. Anything tricky I'm missing? Thanks! Quote Link to post Share on other sites More sharing options...
pitti Posted June 16, 2010 Author Share #16 Posted June 16, 2010 On my L1 the shortcuts from the link works very fine. Perhaps you forgot something? 1. Turn off the camera. 2. Set the shutter speed dial to the 8 position. 4. Press and hold the AFL/AEL button. 5. While holding the AFL/AEL button turn on the camera 6. Press and hold the [FUNC.2] button, then MENU/SET and ◀ (Left arrow) buttons together 7. Again, press and hold the [FUNC.2] button, then MENU/SET and ◀ (Left arrow) buttons together. The camera will show its usage information in two pages. Press the DISPLAY button to switch between the pages. Regards Peter Quote Link to post Share on other sites More sharing options...
Simonizer Posted June 16, 2010 Share #17 Posted June 16, 2010 Thanks Peter. I have just purchased the body and no lens it attached. Could this be the reason why? surely not. I have done as follows: 1. Turn off the camera. 2. Set the shutter speed dial to the 8 position. 4. Press and hold the AFL/AEL button. 5. While holding the AFL/AEL button turn on the camera.. When I get to this stage screen/evf is blank or a regular menu pops up (where it was last left when powering down). No special menu in sight. With the D2 it pulls up the info immediately, but I must be doing something wrong on the L1 I am missing... Quote Link to post Share on other sites More sharing options...
pitti Posted June 16, 2010 Author Share #18 Posted June 16, 2010 I have tried it without a attached lens, and it works too. Note: after turn on the camera (point 5) you will see the regular menu, but anyway you are now in the temporary service menu! Proceed the procedure with point 6 and you will see now the error-code-memory-screen. Now pepeat point 6 and voila, you are at the info screen. Regards Peter Quote Link to post Share on other sites More sharing options...
pop Posted June 16, 2010 Share #19 Posted June 16, 2010 When I get to this stage screen/evf is blank or a regular menu pops up (where it was last left when powering down). No special menu in sight. With the D2 it pulls up the info immediately, but I must be doing something wrong on the L1 I am missing... Could your problem possibly be related to the fact that the equivalent to the Digilux 2 is the LC1 while the L1 corresponds to the Digilux 3? Quote Link to post Share on other sites More sharing options...
ASpes Posted June 16, 2010 Share #20 Posted June 16, 2010 ...When I get to this stage screen/evf is blank or a regular menu pops up (where it was last left when powering down). No special menu in sight. With the D2 it pulls up the info immediately, but I must be doing something wrong on the L1 I am missing... Simonizer, guess you're not doing anything wrong, point is that nothing is showing you're in service mode when you enter it, but if you go to the bottom of the Custom Menu you'll find one more option named "SENSOR CLEAN". this shows you're in, as in normal use it is not there. The tricky part (for me at least, small buttons) comes when you have to press the menu and left arrow together while holding the Func2 button, but using the side of my thumb to press them both has made it easier for me. I can vouch the sequence works well on either the D/3 and the L1, as I have them both, and it works alike with or without a lens. Hope it helps. Quote Link to post Share on other sites More sharing options...
